Determination of water equivalent of calorimeter (K)

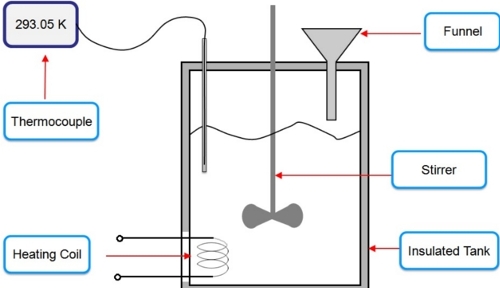

A thermos Flask of 100 ml capacity is filled with distilled water. System is heated via electric coil connected to constant voltage and current source. As the temperature rise of 1-2 degrees is noted, the power supply is switched off. The initial and final temperatures should be noted for calculation of the K, water equivalent of calorimeter.

Select duration of power to be supplied


Temperature K

Current          A

Voltage          V
